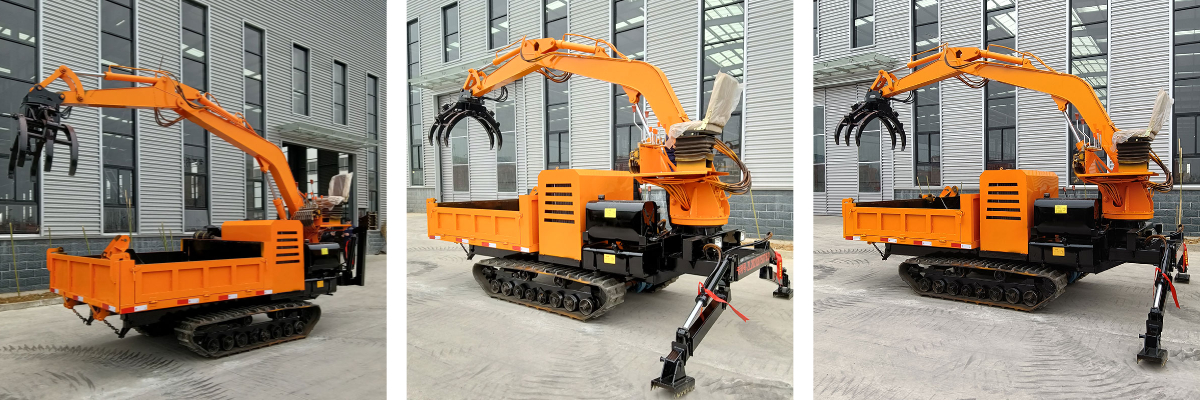

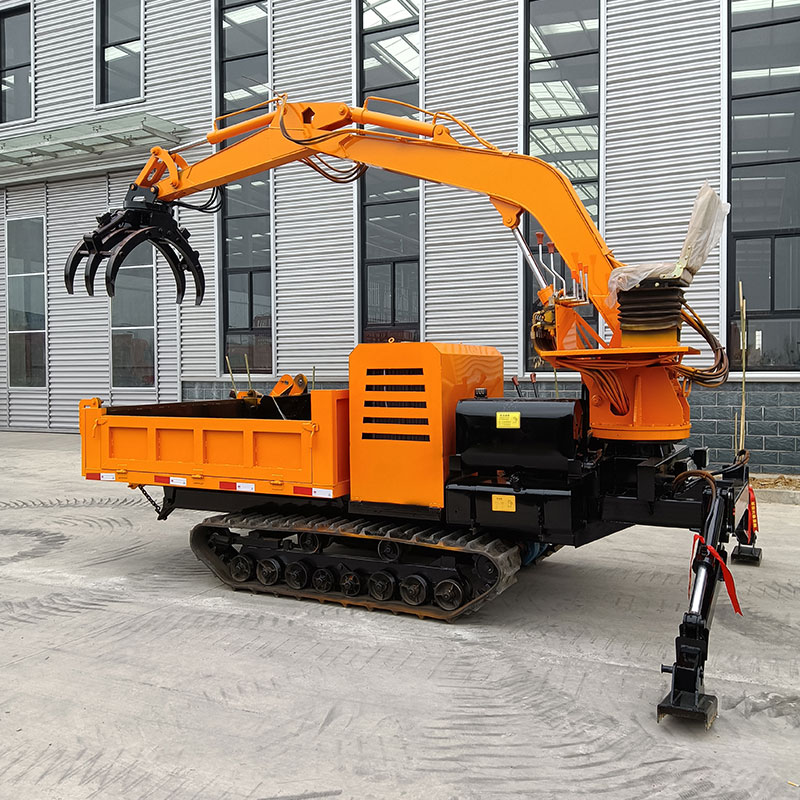

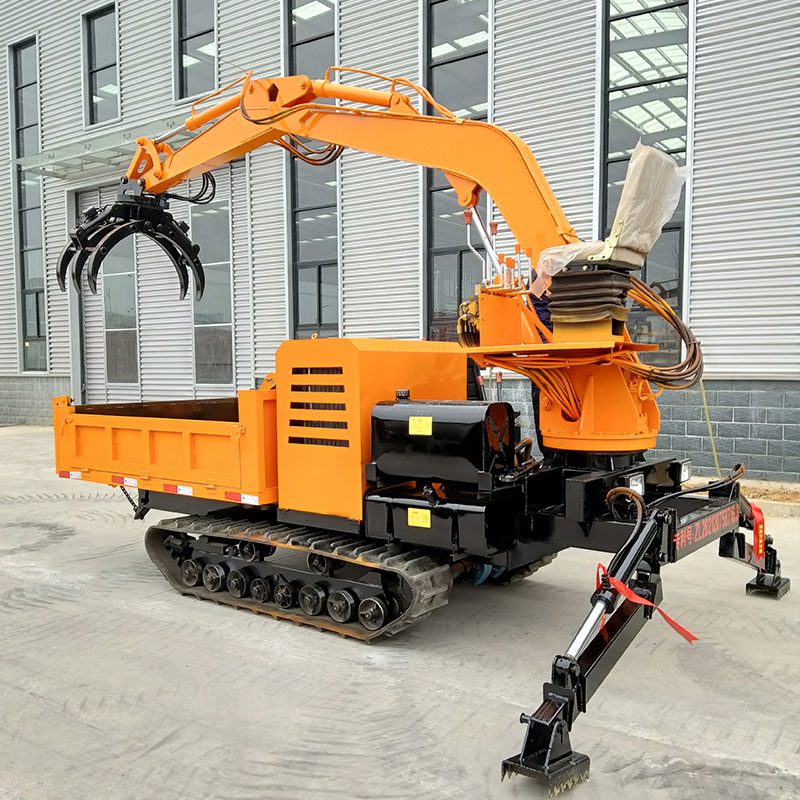

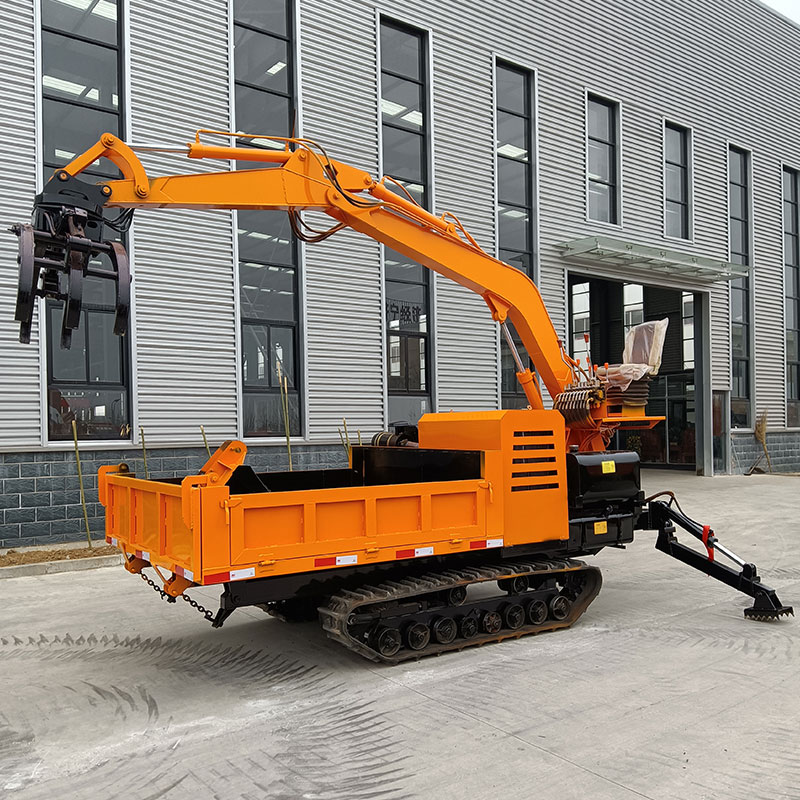

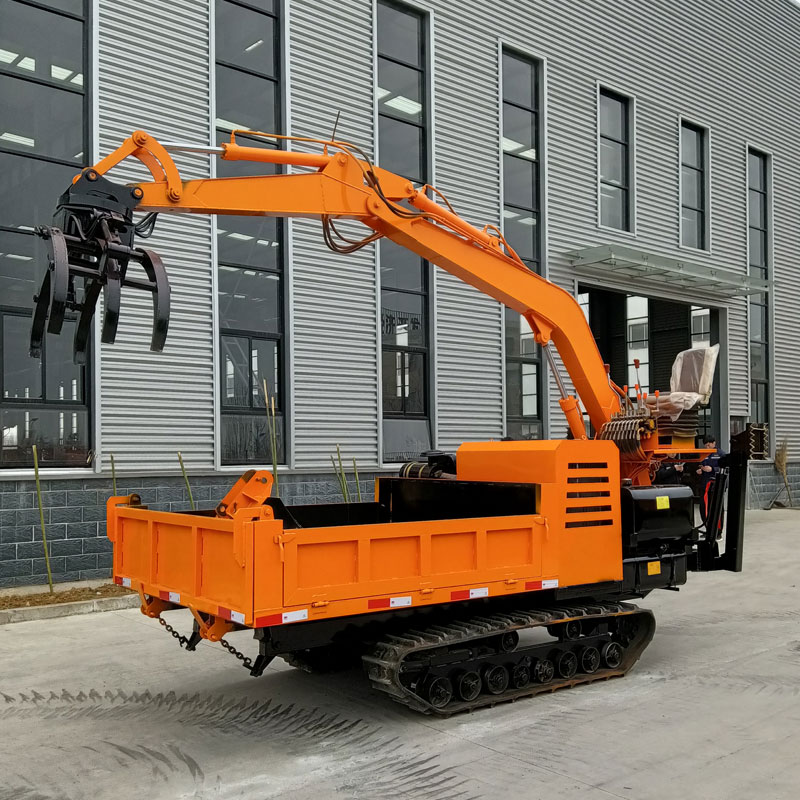

10-ton caterpillar dump truck with an excavator
1. High mobility installed on the chassis of the machine can be easily moved between various jobs, for example, in urban construction, can be quickly moved from one area to another area of operations.
2. Multifunctional use can not only dig, but can also be used to load materials, processing and other tasks, as in small construction projects can be loaded and unloaded.
3. High efficiency of work, flexible management of the working body, can quickly and accurately complete the excavation of soil, effectively reduce work time.
Product representation
10 -ton caterpillar dump truck with an excavator - this is a medium -sized construction technique that combines high mobility, multifunctionality and high efficiency, which is widely used in many areas, such as municipal construction, road construction, landscape design, small construction work and updating agricultural lands. It skillfully combines an excavator and an automobile chassis, so the equipment has excellent cross -country ability and excellent operational characteristics, and can also work effectively in difficult working conditions, satisfying a variety of construction needs.
Parameters
Engine model |
Engine 4102 with boost |
Engine power |
68KW |
Transmission model |
gearbox 145 |
Broadcast |
5+1 gear an air impetus at high and low speeds |
Front bridge model |
2050 |
Model of the rear axle |
1080 |
Drive mode |
Pneumatic switching all -wheel drive |
Cabin size |
3500*2100*600mm |
The dimensions of the entire car |
5700*2100*2750mm |
The thickness of the steel sheet |
Bottom 4 side 3 |
Tire type |
825-16 (rear double wheels) |
The length of the arrow |
5 meters (optionally) |
Bucket model |
60 (optionally) |
The strength of digging |
3.5 tons |
Excavator's work |
Upper operation |
Turning mechanism |
360 degrees |
Outrigger |
Two inclined legs in standard configuration |
Battery |
24V |
The cabin of the driver |
Single closed cab |
Carrying capacity |
25 ° |
The speed of movement |
3-60km/h |
Auxiliary equipment |
Capture of wood, crushing hammer, etc. |
Braking |
Air brake |
Steering |
Hydraulic steering wheel amplifier |
The method of unloading |
Hydraulic dump truck |
Carrying capacity |
8-10 tons |
Exhibition cabinets
Acquaintance with the plant
Jining Yadong Construction Machinery Co., Ltd. Located in the zone of economic development Jinin, the Shandun province, and is a modern enterprise specializing in research and development, production and export of construction equipment.
The plant occupies an area of 90,000 square meters, has spacious and standardized production workshops equipped with leading international equipment and automated production lines, from accurate processing of parts and components to the assembly and commissioning of the entire machine, each process strictly complies with international quality standards and industry standards, And has a powerful production capacity of 300 sets of various types of construction equipment per year.
