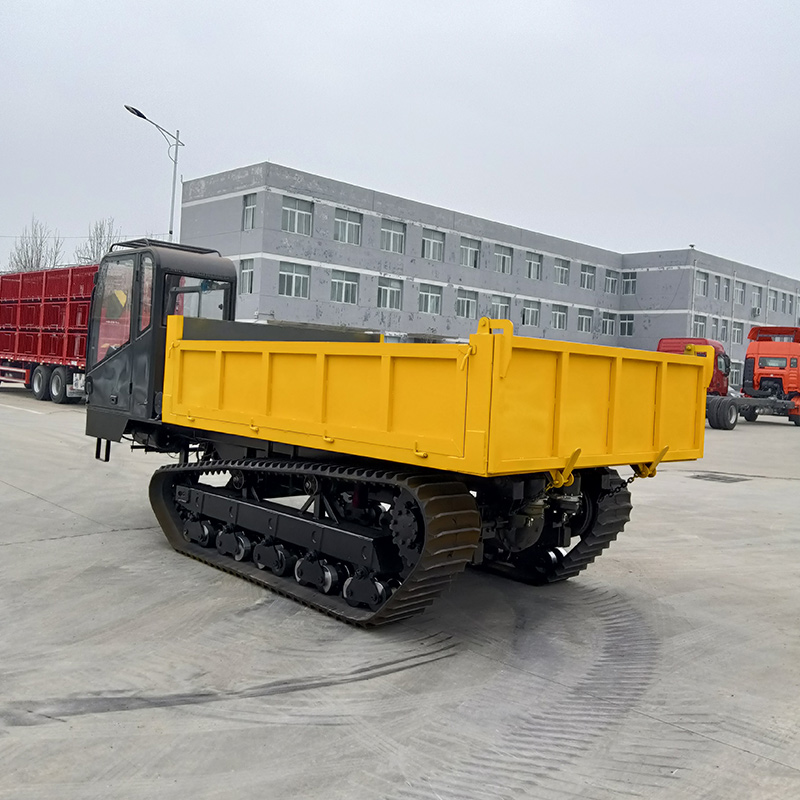

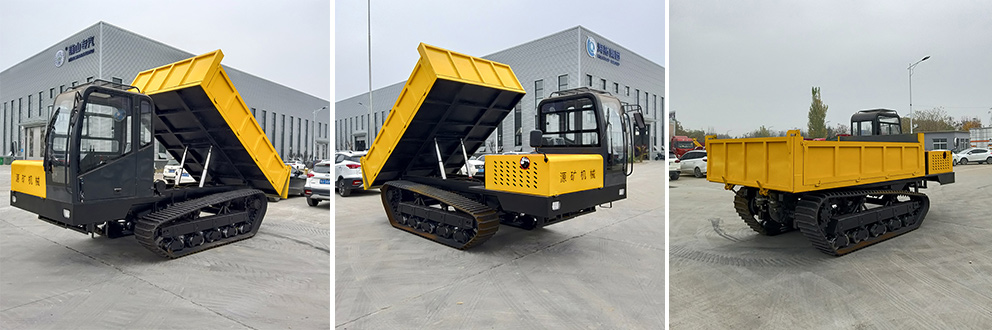

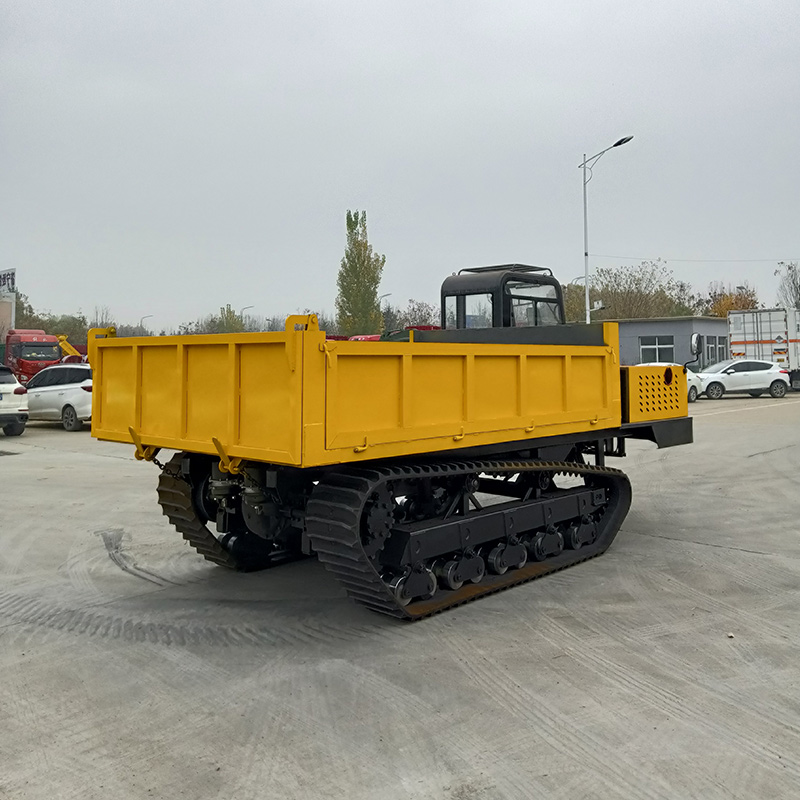

15 Ton caterpillar dump truck

Product representation

I. The main parameters

1 mass of the total car: about 15 tons, when ensuring a carrying capacity, to ensure the stability of the car in various complex areas of the area.

2. The size of the compartment: the total compartment has a length of 4 - 5 m, width 2 - 2.2 m, a height of 0.8 - 1.2 m, the volume can reach 8 - 12 cubic meters. m to meet the requirements of loading various materials.

Engine power: usually equipped with an engine with a capacity of about 100 - 150 kilowatts, providing powerful energy of the vehicle.

3. External dimensions: in the transport state, the length of the total car is about 6-7 meters, width is 2.5-3 meters, height is 2.8-3.2 meters, which is convenient for travel and work on various sites.

Secondly, operational characteristics

1 carrying capacity: nominal carrying capacity is 15 tons, a high -strength frame and a suspension are able to withstand the large weight of the cargo, suitable for transporting heavy cargo.

2. Hope qualities: a caterpillar mechanism of movement is used, with a large support area and a low pressure on the support, which provides good cross -country ability and cross -country ability. It can easily move around the dirty, soft, crossed and other complex areas, such as construction sites, mines, mountains and forests. The strong ability to rise, as a rule, can rise along the slope of 30 - 40 degrees, adapting to operating conditions with a different bias.

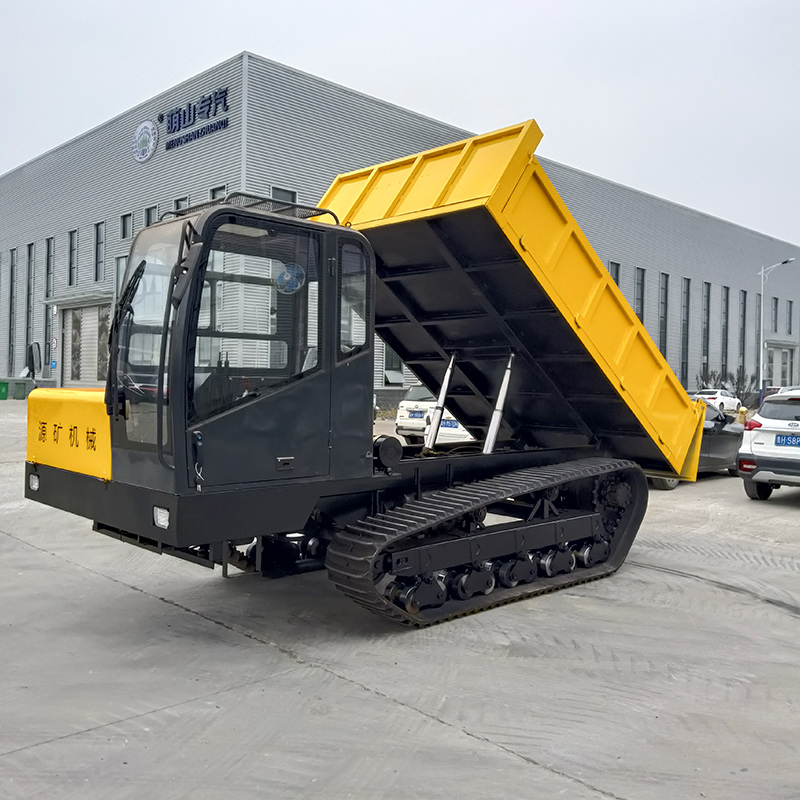

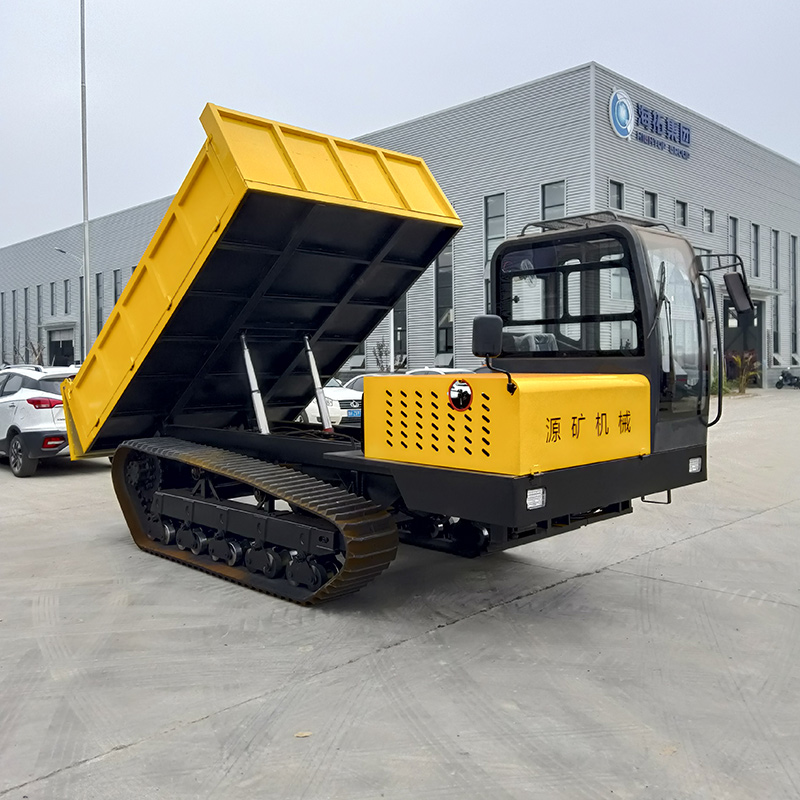

3. The function of self -unloading: is equipped with an effective hydraulic unloading system through the manipulation system to control the movement of the piston rod, to achieve wagons backwards of the overestimation. The overturning angle is usually 45 - 60 degrees, which can provide fast and complete unloading of the load, and the unloading time is short, which significantly increases the efficiency of work. The carriage can be easily returned to the starting position due to its own gravity and hydraulic control, it is easy to operate.

Configuration

1. Engine: the engine of the known brand, such as cummins, Weichai, etc., which has characteristics of strong power, good fuel savings, high reliability, and emissions correspond to the environmental protection standard, etc. The engine uses advanced fuel injection technology. The engine uses advanced fuel injection technology and turbocharging technology, which allows you to steadily develop power in various working conditions to satisfy the needs for driving in difficult conditions and frequent operations.

2. Hydraulic system: it uses a high -quality hydraulic pump, a distribution valve and a lifting hydraulic cylinder to ensure stable and reliable operation of the tipping system. Hydraulic components have high accuracy, good seal and small loss of pressure, which allows you to achieve a quick and smooth rise and lowering. Meanwhile, the hydraulic system is equipped with a control device from overload to prevent equipment damage due to overload.

3. The caterpillar system: caterpillars are made of high -strength rubber or metal, which are wear -resistant, resistant to cuts and are not subject to aging. Metal caterpillars have increased strength and durability and are suitable for use in harsh conditions, for example, in mines, while rubber caterpillars have advantages such as low noise and low level of soil damage, and are suitable for areas with high requirements for even soil. . The step and width of the caterpillars are optimized to increase the stability of the movement and traction of the machine.

4. Cabin: designed taking into account the requirements of ergonomics, the interior space is spacious and convenient. Equipped with adjustable seats, it effectively reduces the fatigue of the driver during prolonged work. Sound -insulating and thermal insulation materials reduce the level of external noise and heat transfer, creating favorable conditions for the driver's work. At the same time, the cabin has a wide field of view, is equipped with a large windshield and a rear view mirror, which is convenient for the driver to observe the operating situation around the vehicle.

5. Electric system: it uses the advanced electrical control system and is equipped with a dashboard, which can display the condition of the car in real time, such as engine speed, oil temperature, oil pressure, power and so on. It is equipped with the function of self -diagnosis of malfunctions, which can quickly and accurately determine the place of malfunction and facilitate the maintenance of the maintenance. The electric system is also equipped with lighting systems, alarm and other devices that ensure the safety of the car operation at night or under adverse weather conditions.

IV. Application scenarios

1. The construction site: is used to transport building materials such as sand, gravel, cement, brick, etc., as well as for cleaning construction waste. Thanks to a large carrying capacity and good cross -country ability, it can freely move in difficult conditions of construction site and effectively carry out transport tasks.

2. Mining industry: transportation of ore, waste and other materials in mines. The caterpillar structure allows him to adapt to impassable and dirty roads in mines, ensuring the continuity and stability of transportation.

3. Rural and forestry: can be used to transport wood in mountainous and forest areas, as well as for the transportation of fertilizers and agricultural products on farms. He can move along narrow and uneven field paths and mountain forest roads, solving the problems of transporting materials.

4. The project of the reservoir: during the construction of the project of the reservoir, he transports land, stone and other materials, providing support for the construction of dams, the preparation of rivers and other projects.
