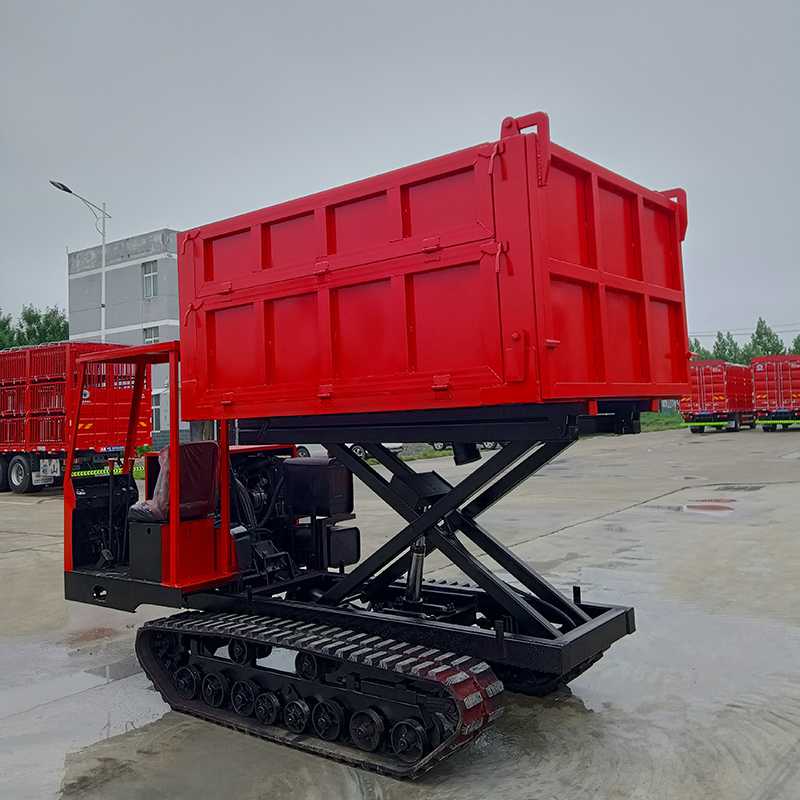

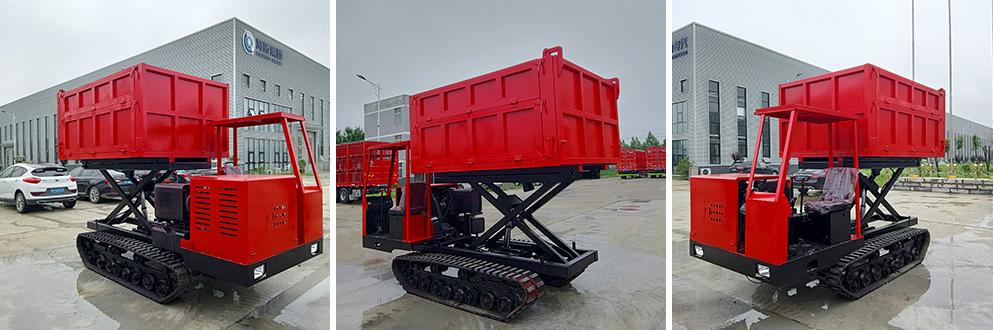

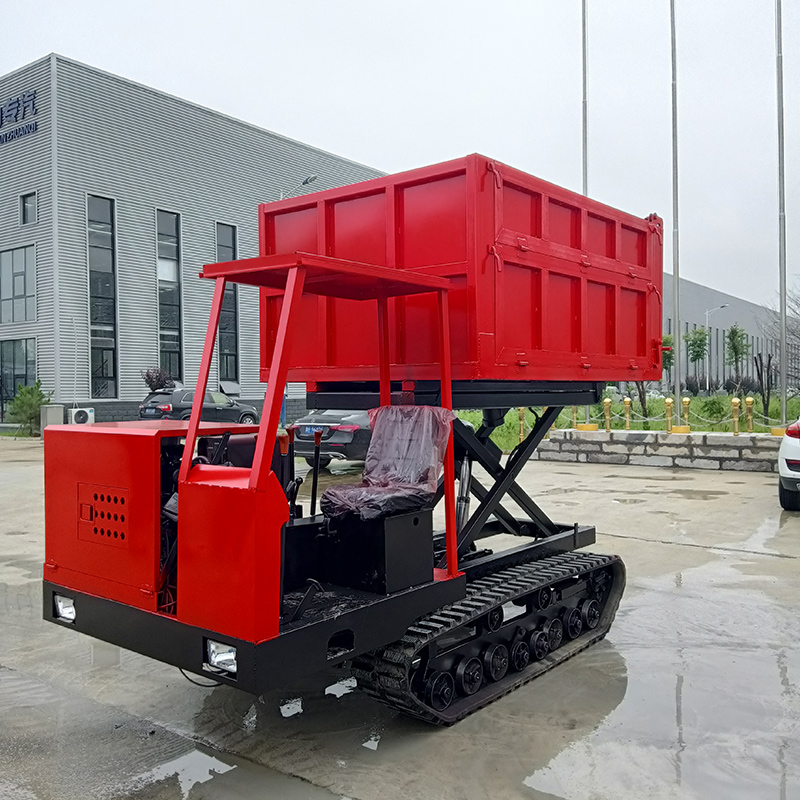

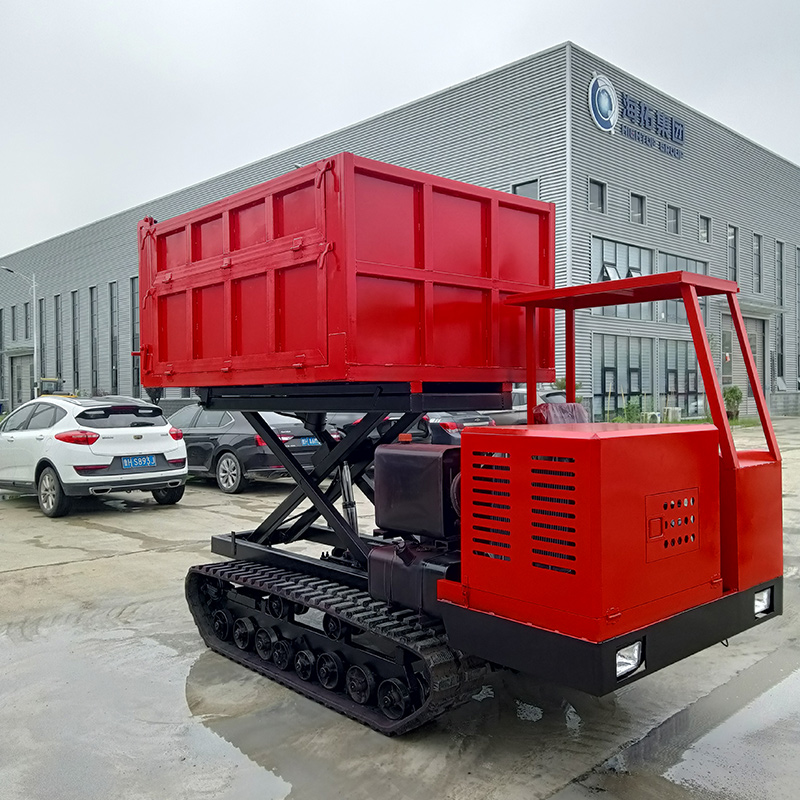

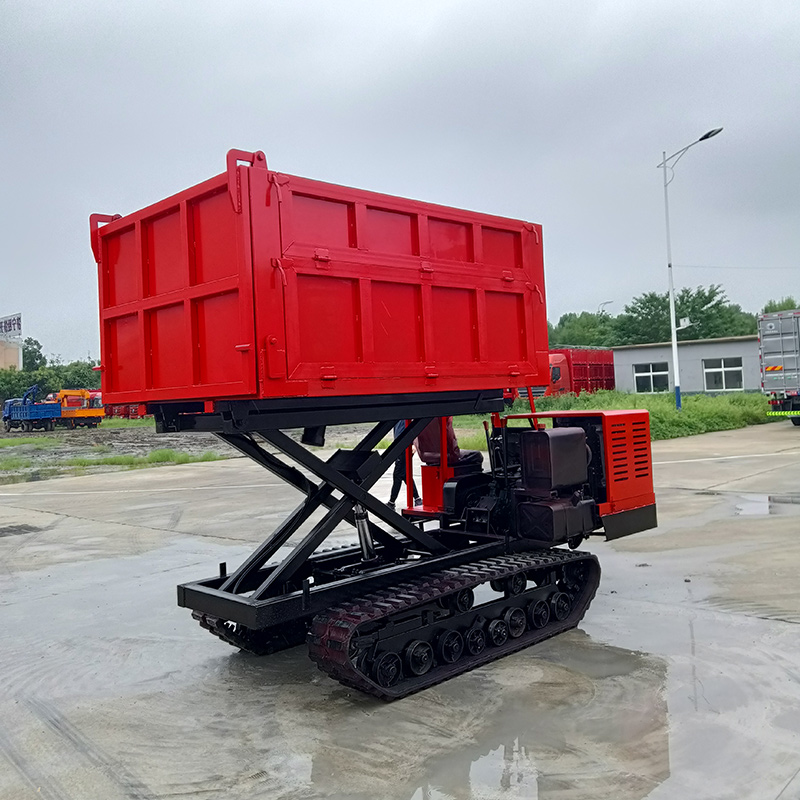

1.5 Ton caterpillar dump truck
1. Great carrying capacity: the nominal carrying capacity is 1.5 tons, the trolley has a reasonable structure, and the carrying capacity is large, which can satisfy the needs for transporting various materials.
2. Maneennial and flexibility: goose -like walking, reliable adhesion, the possibility of moving along a complex area, a small radius of rotation and flexibility in operation.
3. Durability: the main components are made of high -strength steel, have a strong design and anti -corrosion surface treatment for adaptation to harsh operating conditions.
Product representation
Dimensional dimensions: in general with an engineering cargo boxing 2300*850*1300mm.
Frame material: the longitudinal beam of the frame is 50mm × 100mm, the frame of the support wheel is made of a thickened rectangular tubular beam 40mm × 80mm, the design of the chassis is thickened, with strong bearing capacity.
Caterpillars: reinforced and expanded caterpillars made of engineering rubber, with strong clutch and wear -resistant.
Power and performance
Power installation: equipped with a 12 hp with a diesel engine with sufficient power.
Movement speed: maximum speed up to 21 km/h.
Cracability: a minimum road clearance of 230 mm, is able to adapt to various difficult road conditions.
Management and functions
Design: seat, good comfort for driving.
The steering system: the disk type of steering, can carry out a turn on the spot and a turn.
Transmission System: 3-B-1-in-off gear, convenient management is used.
The function of self -unloading: equipped with a hydraulic bucket for self -unloading, can easily load and unload goods.
Other
Applicable scenarios: suitable for complex and harsh road conditions, such as rice fields, swamps, dirty field roads, impassable mountain roads, soft meadows and deserts, slippery ice and snow, etc. It can be used in agriculture, forestry and garden transport, loading in the cargo yard, the construction of reservoirs, infrastructure projects, mining plants and other scenarios.
Parameters
Engine model |
diesel |
Technical characteristics of the engine |
195F |
Grades of transmission |
Gearboxes for caterpillar machines |
Transmission level |
3+1 |
Activation method |
Electric launch |
Caterpillar type |
230*72*46 |
The width of the track |
230mm |
Car carrying capacity |
1500KG |
behave with dignity |
550kg |
The size of the container |
1350*1050*400mm |
Car size |
2300*850*1300mm |
The material of the support wheel |
Accurate filling |
The width of the chassis |
850mm |
Unloading method |
Hydraulic self -discharge |
Transmission method |
average mechanical value |
Work method |
Standing lever |
The maximum slope of the rise |
35-45 ° |
speed of movement |
8km/h |
Fuel consumption |
0.5l/h |
The length of the chassis ground |
1200mm |
