24 ton caterpillar excavator
1. Powerful power: equipped with a powerful engine, it has a sufficient supply of power, great explosive force when excavating soil and can easily cope with difficult working conditions.
2. Effective work: an optimized hydraulic system is combined with a powerful working device, which is characterized by a quick reaction to action, a short time of the working cycle and significantly increased efficiency.
3. Stable and reliable: the high -strength fuselage frame is combined with a strong chassis, the center of gravity is designed reasonably, it is stable and does not shake during operation, and the key components are durable and stable.
4. Intellectual navigation: equipped with an intelligent operating system, has functions of diagnosis of malfunctions and remote monitoring, ensures the accuracy of work and simplicity of service.

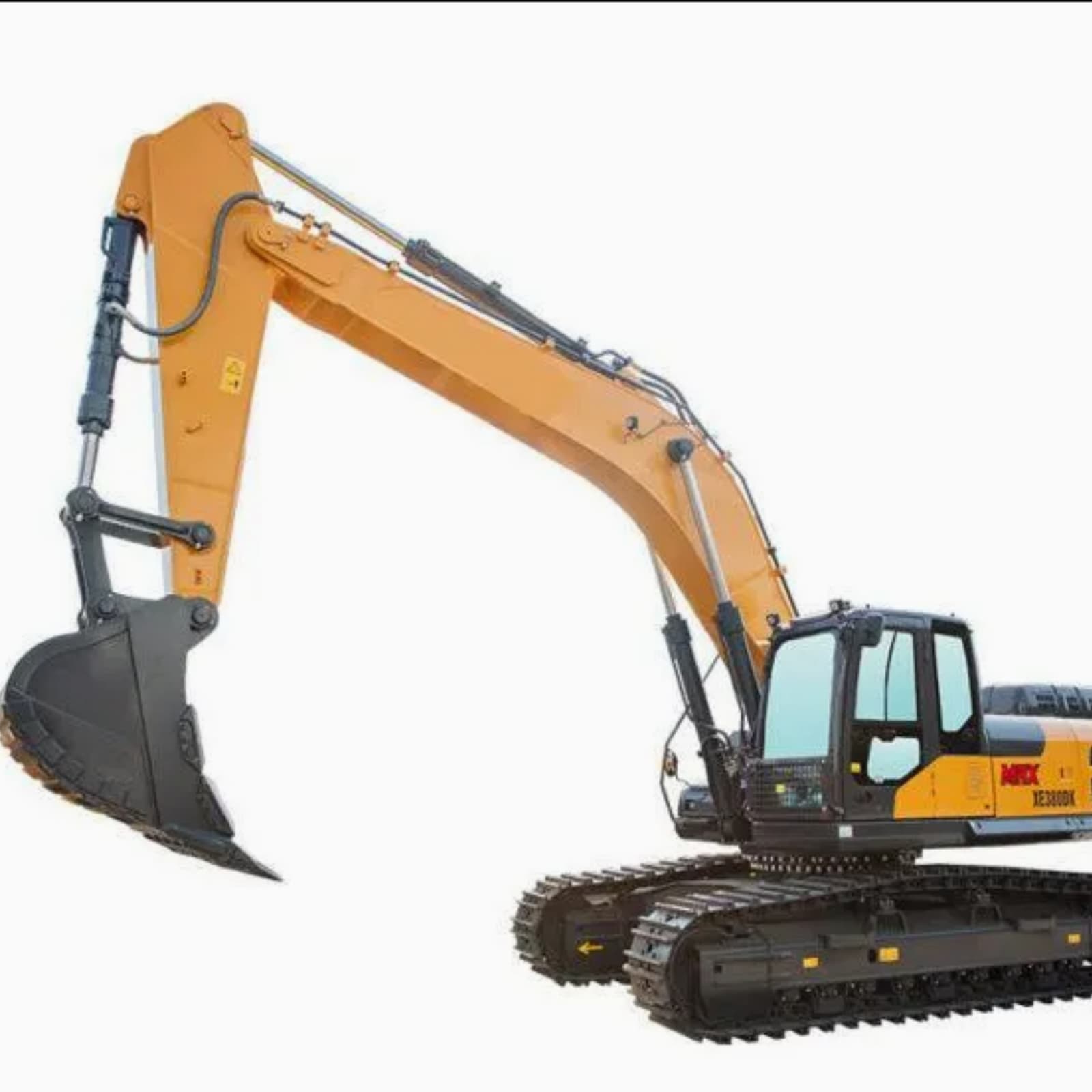

Product representation
1 、 The main parameters
The total mass: 23.6 tons is suitable for all types of intensive engineering work.
The standard volume of the bucket: 1.2 cubic meters, the digging volume is significant, effectively completes the earthwork.
The maximum digging radius: 10 meters can easily cover a large area of work.
The maximum digging depth: 6.8 m, which meets the requirements for the depth of digging foundations in overall construction.
Maximum unloading height: 6.5 meters, which is convenient for an effective connection with all types of vehicles.
2 、 power plant
Engine: equipped with a powerful engine of the world -famous brand, it has high power and can work stably at high temperature, at high altitude and in other difficult working conditions, with output power up to 142 kW and a strong torque, not afraid of difficult construction conditions.
Energy -saving technology: using the advanced intellectual power control system, it can control the load on the engine in real time and accurately adjust the volume of fuel injection and the output power of the hydraulic pump to optimize the interaction between the engine and the hydraulic system, which reduces the fuel consumption by 30% compared to similar products.
3 、 Working device
Mobile arrow and bucket beam: made of high -strength special steel, after special heat treatment, strength and viscosity are significantly increased. A unique structural design not only increases the strength of digging, but also expands the operating range, which can realize the polygonal and large digging of the depth.
Bucket: Equipped with teeth of a bucket of special alloy with high hardness and wear resistance, service life in [x] times more than that of ordinary bucket teeth. The teeth of the bucket have a quick -change design, the operator can replace in a short time, effectively increase the efficiency of work, is suitable for all types of soft and solid materials for earthwork.
4 、 hydraulic system
Advanced components: the choice of international first -class brands of hydraulic pumps and control valves, with high accuracy, high reliability, loss of pressure in the system is very small to ensure a stable supply of hydraulic oil and accurate control.
Accurate control: the introduction of an advanced sensitive to the load of the hydraulic system, the system can automatically and accurately adjust the flow and pressure of hydraulic oil in accordance with the actual requirements for the action of the working device, to achieve accurate and smooth control, even complex and thin movements can be easily completed.
5, structural design
Chassis: A wider and more thick high -strength construction of a chassis with large caterpillars is used, which increases the area of contact between caterpillars and earth and effectively distributes the weight of the entire machine. This not only significantly increases the stability of the entire machine during operation, but also improves the passage of the excavator in mud, on the slopes and other complex areas.
Cabin: a spacious and comfortable design corresponding to the principle of ergonomics. Equipped with a suspended seat, it can effectively filter vibration from the ground and reduce the fatigue of the operator. Panoramic glass of increased size provides a good overview of 360 degrees without a dead angle, which guarantees construction safety.
6 、 Maintenance
Simplicity of service: engine hood, hydraulic oil tank and other key parts have a convenient opening design, and all service points are located in the center, which is convenient for maintenance personnel during daily inspection, maintenance and repair, and also significantly reduces service time.
Long -term cycle: the choice of high -quality components and the improved design of the lubrication system reduce the wear of the components, extend the equipment service cycle, reduce the cost of maintenance and downtime, and also increase the efficiency of equipment use.
7 、 Field of application
It is widely used in all types of construction projects, such as digging a pit under the foundation of high -rise buildings, the construction of roads and bridges, large -scale mining, for the excavation and loading of ores, and projects to preserve water resources, such as dredging rivers, the construction of dams, and so on .
Parameters
| The main parameters of the entire machine | Weight | 23600KG |
| Total length at the time of transportation | 9740 (mm) | |
| Total height during transportation | 3135 (mm) | |
| The width of the track | 3190 (mm) | |
| The length of the path | 4450 (mm) | |
| Manometer | 2380 (mm) | |
| Minimum road clearance | 440 (mm) | |
| The length of the movable lever | 58500 (mm) | |
| Bucket length | 3050 (mm) | |
| The volume of work | The maximum digging height | 9310 (mm) |
| The maximum unloading height | 6440 (mm) | |
| The maximum digging depth | 6875 (mm) | |
| The maximum digging range | 10170 (mm) | |
| Maximum depth of vertical digging | 5860 (mm) | |
| The minimum turning radius | 3975 (mm) | |
| The radius of turning the tail | 2810 (mm) | |
| Mechanical system | Engine model | Cummins QSB7.0 |
| rating | 142KW | |
| Hydraulic system | Hydraulic pump | Kawasaki, Japan |
| Hydraulic valve | Kawasaki, Japan | |
| Nominal working pressure | 37mpa | |
| Maximum flow rate l/min | 228*2L/min | |
| Work parameters | Bucket capacity (SAE) | 1.20-1.45m³ |
| speed of movement | 3.5-5.2km/h | |
| Rotation speed | 11.r/min |

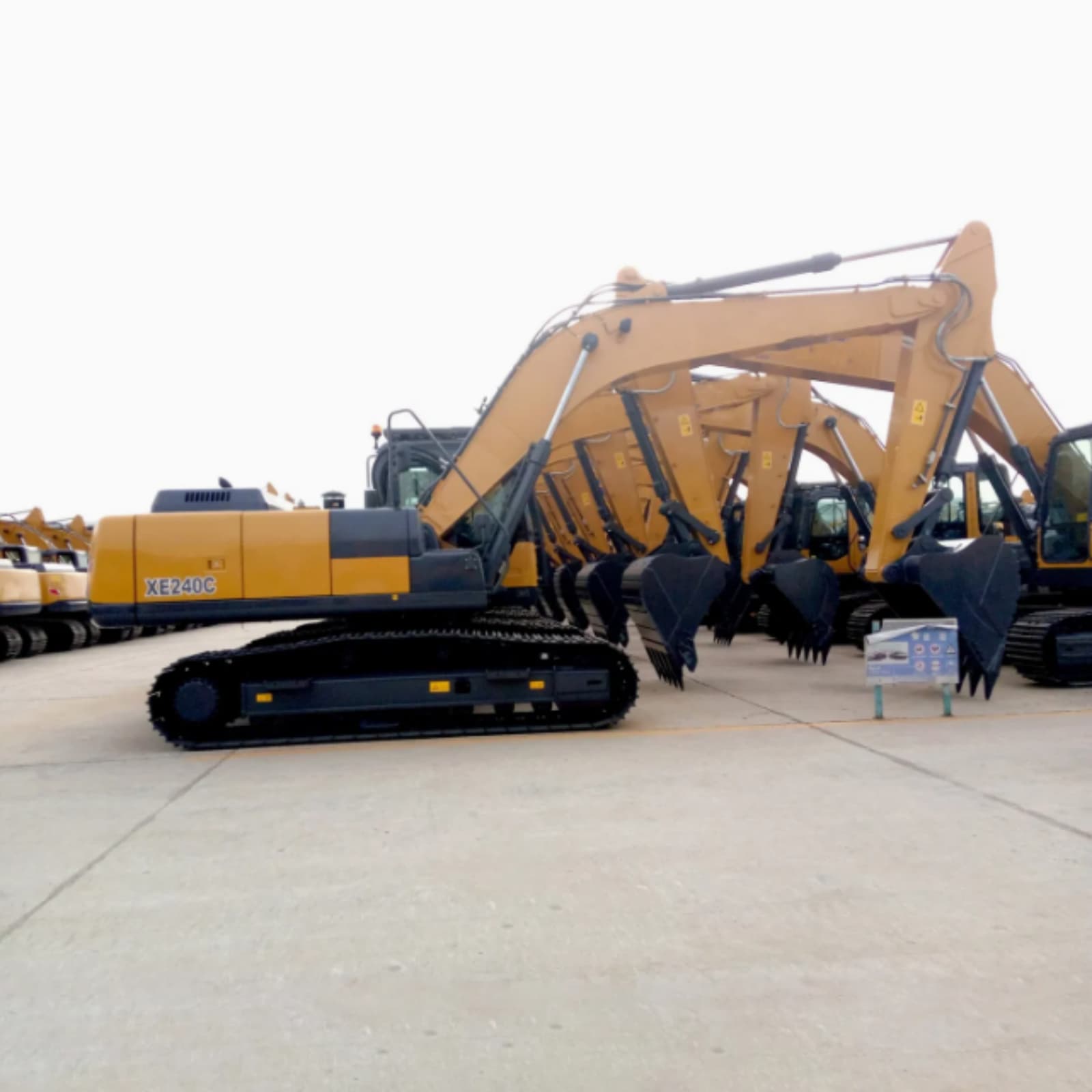

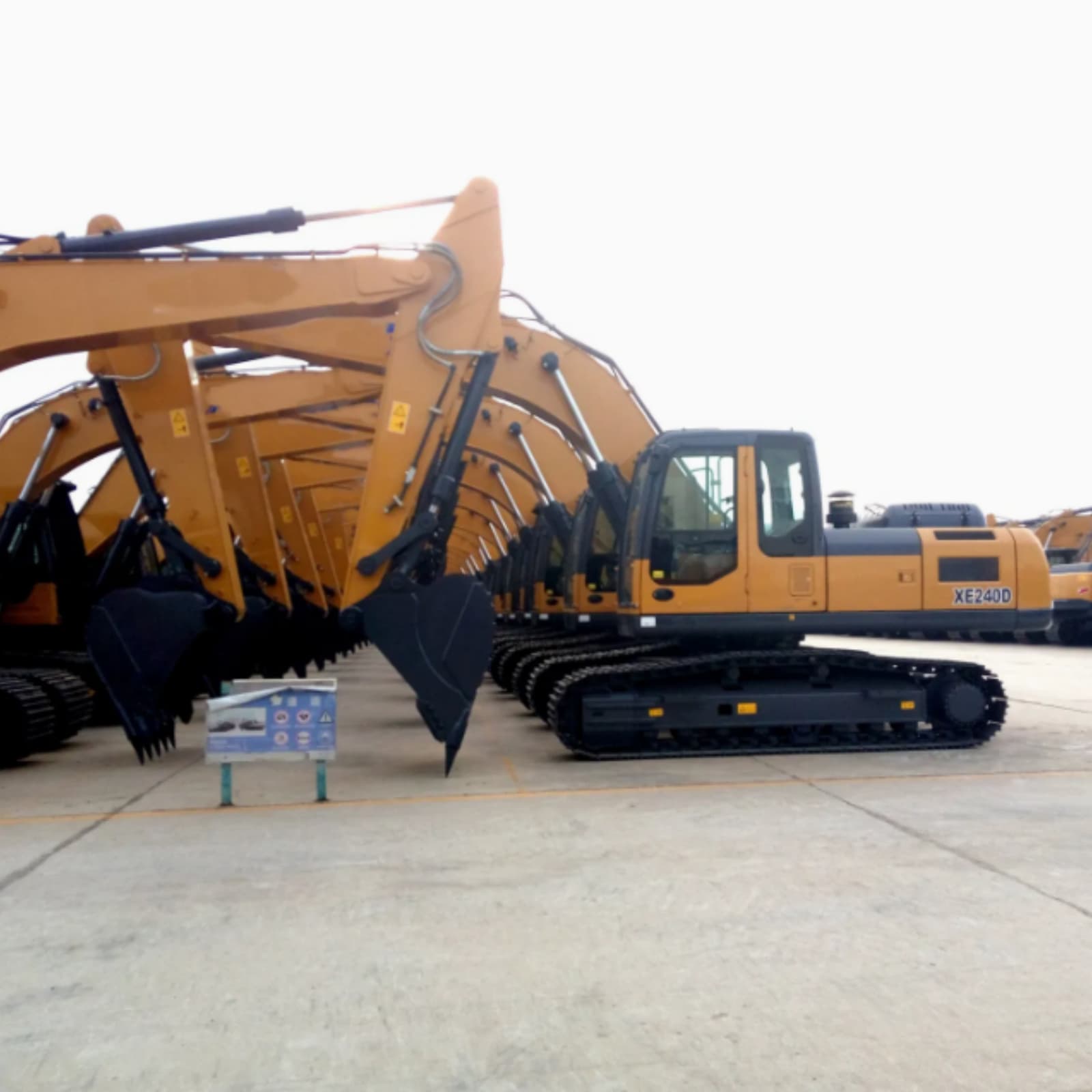

Exhibition cabinets
Acquaintance with the plant
The plant occupies an area of 90,000 square meters. m and has a spacious modernized production shop. It is equipped with advanced international production equipment and automated assembly lines, which ensures strict compliance with international quality standards and industry standards at each stage - from accurate processing of parts and units to full assembly and commissioning. Possessing powerful production facilities, the company can produce up to 300 units of various types of construction equipment per year.
