Sany 11568705 Original controller

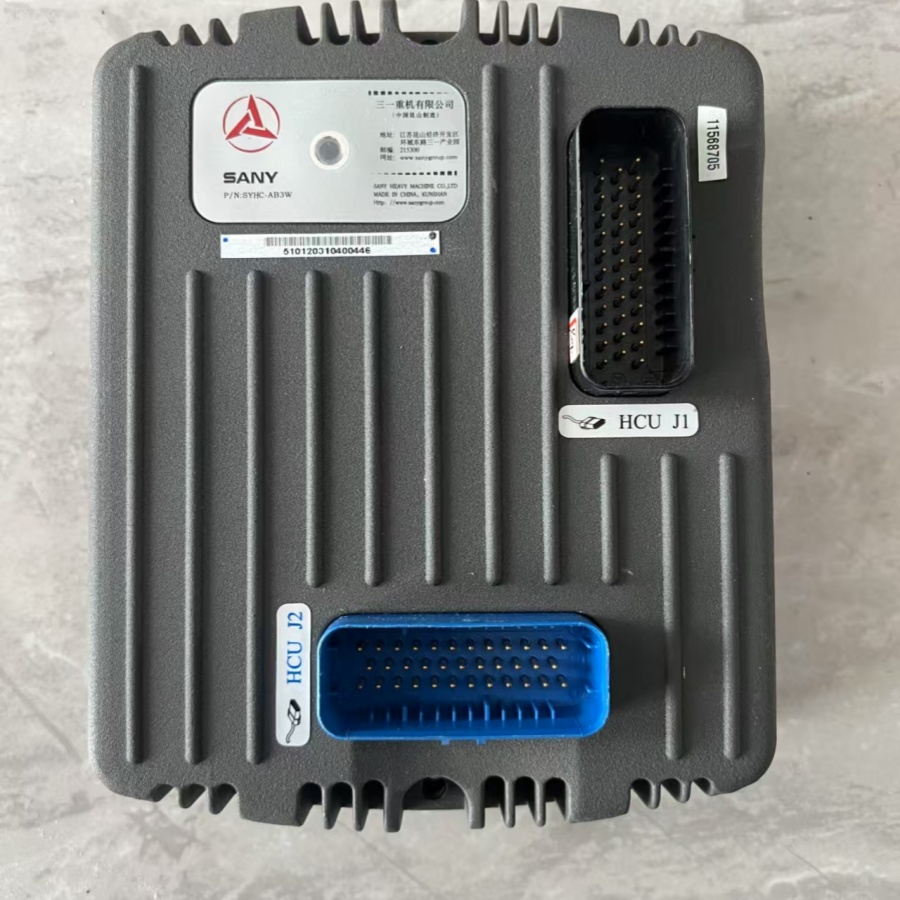

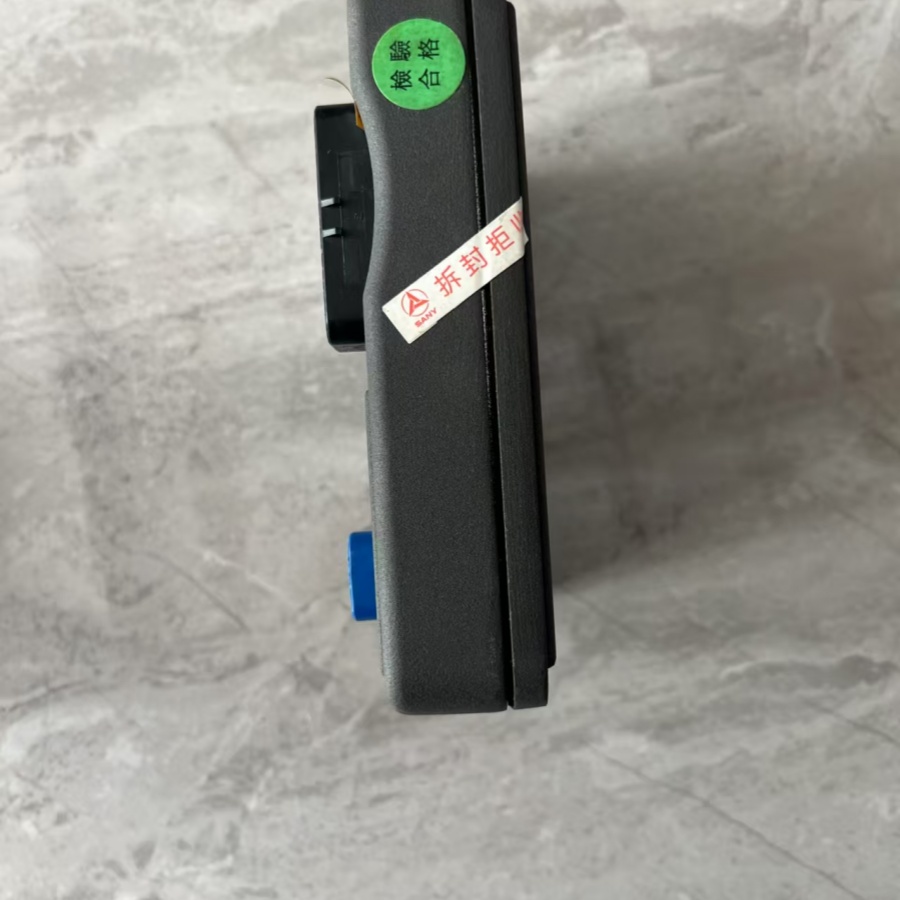

Product representation

The basic principles of work

Collection of input signals

Connection to sensors and sensors ： Controller 11568705 Sany is connected to various sensors and sensors on equipment, such as temperature sensors, pressure, position, etc. These sensors convert physical quantities, such as temperature, pressure, speed into electrical signals.

Converting analog signals ： If the sensors give analog signals, the controller contains an analog-digital transformation module (ADC), which converts analog signals into digital so that they can be processed by the controller.

Signal processing and decision making

The central processor ： The controller is equipped with a central processor (CPU), which performs logical operations, calculation and processing of data. CPU analyzes incoming signals from sensors, compares them with set values ​​or programs, and based on this makes decisions about what actions it is necessary to take.

The built -in program ： A special built -in program is stored in the controller, which defines the rules and signal processing algorithms. For example, if the engine temperature exceeds the given limit, the program may indicate the controller to reduce the engine power or turn on the cooling system.

Issuing control signals

The digital-analysis transformation module (DAC) ： If you need to send an analog signal to control external devices, the controller uses the digital-analysis transformation module to convert the digital signals formed by CPU into analog signals.

Management of performing mechanisms ： Controller sends control signals to the actuator, such as motors, valves, fans, etc. These signals force executive mechanisms to perform appropriate actions, for example, drive the motor in motion, open or close the valves, and regulate the fan speed.

Features of technical principles

Implementation of communication between devices

The communication tire system ： Controller 11568705 Sany can be connected to other equipment components through various tire systems, such as CANShin, Ethernet, etc. Tire systems allow the controller to exchange data with other devices, such as a motor controller, a brake control system, an information display.

Data exchange and coordination ： Using tires of communication, the controller can receive information from other devices and send their control commands to them. For example, the controller can interact with the engine control system in order to jointly control the operation of the machine.

Functions of protection and diagnostics

The protection system ： Controller has built -in protection functions, such as overload protection, protection against dissatisfied voltage, protection against perennins. When the controller discovers that the system parameters go beyond the permissible values, it can automatically take protection measures, for example, disconnect the equipment or reduce its power to prevent equipment damage.

The diagnostic system ： Controller can also perform self -diagnosis of its work and the operation of related devices. He can check the performance of his components, such as sensors, microcircuits, as well as monitor the condition of related devices. If any malfunctions are found, the controller can record information about the malfunction and issue warning signals.

Key advantages

High control accuracy

Adaptive algorithms ：

The controller uses neural networks and phase correction to optimize the parameters in real time. For example, it can automatically adjust the supply of fuel to the diesel engine, depending on the load and ambient temperature.

Multi -channel analysis ：

It supports the connection of up to 16 sensors at the same time (temperature, pressure, speed, valve position), which allows you to implement comprehensive control of systems.

Resistance to extreme conditions

Metal case with anti -vibration pillows ：

Reduces the influence of mechanical loads, which is critical of use in excavators, dump trucks and other heavy machines.

Electronic protection ：

Protection against overload, electrostatic discharge and voltage jumps.

The "timid" mode for work in conditions of strong dust pollution and high humidity.

Easy integration and intellectual diagnosis

Compatibility with Sany Machinery ：

Direct connection to Sany control systems without additional adapters.

Support for Canopen and J1939 protocols for integration with external devices.

Online diagnostics ：

The built -in diagnostic module allows you to determine the malfunctions in 30 seconds.

Automatic generation of reports on the state of equipment with repair recommendations.

Why choose us?

1. We are the manufacturer and official distributor of many famous brands.

2. More than 25 years of experience in the industry to provide you with professional support.

3. Exclusive channel, high quality and competitive price.

4. Fast delivery, support of OEM/ODM orders.

5. A large stock, we have a warehouse of spare parts with an area of ​​7000+ square meters.

6. 100% quality guarantee, we offer details for excavators of various quality requirements, new and former use original parts, OEM-west parties, spare parts, etc.

Exhibition cabinets

Acquaintance with the plant

The plant operates a team of highly qualified and experienced engineers who continuously introduce technological innovations and improve products. Currently, the company has a number of independent intellectual property rights and patented technologies. The manufactured construction equipment includes a wide range of equipment such as excavators, loaders, taps, bulldozers and other machines. Products are highly productivity, reliability, energy efficiency and environmental friendliness, as well as the ability to adapt to difficult operating conditions in various climatic and working media around the world.

Awards and fightsFixation

frequently asked questions

1. In which countries are we exporting?

Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.

Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.

South America: Brazil, Chile, Paraguay, Argentina, etc.

Africa: South Africa, Ethiopia, Libya, etc.

2. What kind of payment conditions can we accept?

Usually we can work on T/T, 30% TT before production and 70% TT before shipping

3. What ways can we work for delivery?

1) for most countries in Europe, South America and Africa, etc. We can go along the container or Roro through the ocean freight.

2) for neighboring countries of China, such as Russia, Vietnam, Kazakhstan, Uzbekistan, etc. We can deliver by road or railway.

3) for light spare parts in the urgent requirement, we can send it using the international courier service, such as DHL, TNT, EMS or other air transportation.

4. How can you guarantee that you delivered goods to customers?

A: We will provide you with complete information about delivery for you.

5. What are our advantages compared to other manufacturers/factories?

1) Reliable quality: we carefully choose permanent manufacturers to support spare parts, such as engines, bridges, transmission, and many parts developed and produced by us always adapting the best materials.

2) a competitive price: the concentration of mechanized production in large quantities reduces production costs to ensure a competitive price.

3) The service team: firstly, our sales managers work 24 hours a day, are ready to answer your questions at any time. Secondly, a professional training team with senior equipment, ready to provide support services to users and dealers. Most problems can be solved within 24 hours.

4) Fast delivery: As a rule, we can deliver within 10 working days at the plant after receiving prepayment from customers.

6. How can you provide customers after sales service?

A: We will answer you at first and help you solve problems within 24 hours. If we really need your local, we

We will send your professional person to your settlement to help you solve problems without any fluctuations, supply you with comprehensive
