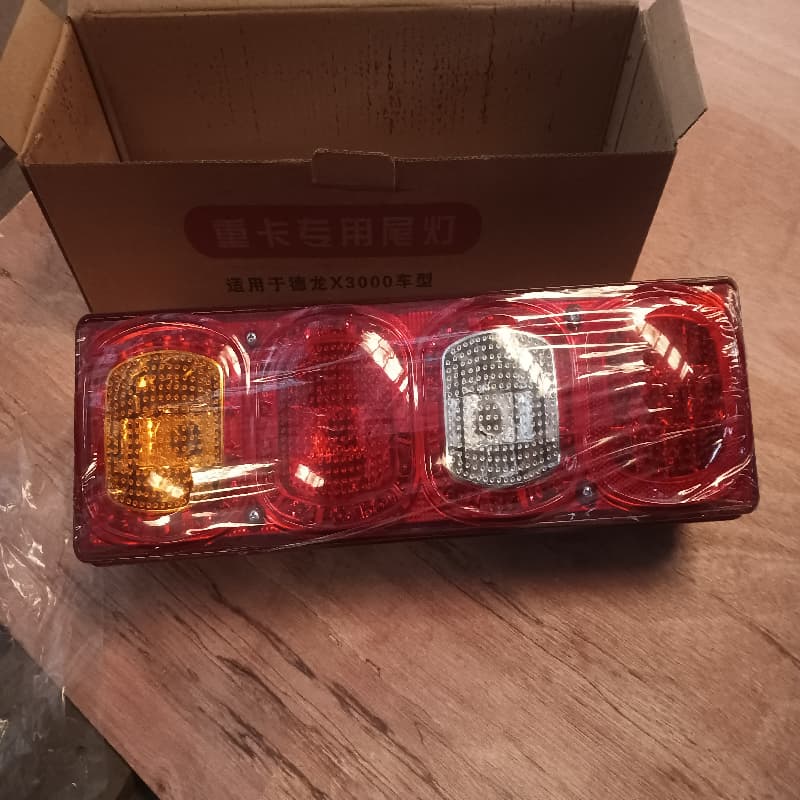

Shacman DZ95189811212 Right Combined Rear Light for M3000 X3000

Brand: As a rule, there is an original Shaanqi brand, in addition, there are brands such as Shengliduo.

Place of origin: partly from Shandun Jinan, Habay Hengshui and other places.

Material: mainly made of plastic and rubber.

Applicable models: Shaanqi Delong X3000 series of heavy trucks.

Appearance

Style: The design style is hard and atmospheric, repeating the hard style of Shaanqi X3000, with smooth lines and sharp edges that increase the overall recognition of the car.

Monker: usually located vertical or horizontal rows, turning lamps, stop symbols, rear lights, rear lamps and other lamps with various functions are reasonably combined, which not only meets functional requirements, but also provides general aesthetics.

Functions configuration

Lighting function

The rear lamp: uses LED light source of high brightness, high brightness, strong penetration, even at night or under poor weather conditions, it can clearly show the position and outline of the car, increase the safety of driving.

Robny flashlight: it automatically lights up when reversing, providing the driver with the rear view lighting, helping him better observe the situation from behind and ensuring safe movement in reverse.

Signal indication function

Turning signals: when the car turns or changes the lane, the turning signals on the corresponding side quickly flashed, clearly indicating the direction of the car with the surrounding vehicles and pedestrians, playing a warning role and preventing road conveyions.

Stop signal: When the driver presses the brake pedal, the stop-signal immediately turns on with high brightness, which can remind the rear cars about the need to pay attention to the slowdown in time and prevent accidents when reversing.

Light source technology

Accepting LED light source: compared to traditional halogen lamps, LED light source has many advantages, such as higher brightness, low energy consumption, longer service life and rapid response time, which can reduce the fuel consumption of the car, reduce the frequency of lamp replacement and reduce The cost of use.

The color of the light and color temperature: LED light sources have a pure light color with a color temperature of 5000K-6000K, which is close to the natural light, providing the best visual effects, without causing glow of interference for other road users.

Product specification

Voltage: usually 24 V, suitable for the electric system of the Shaanqi X3000 car.

The overall dimensions: depend on the specific model and the installation location, are determined depending on the actual model.

Below are the most common malfunctions and ways to eliminate them in the rear combined lamps of Shaanxi Automobile:

The bulb does not work

The causes of the malfunction: the thread of incandescent of the light bulb was burned out due to prolonged use; The lamp cartridge has poor contact, for example, dirt, rust or backlash inside the cartridge, which prevents the normal passage of current; The line is broken, which can be caused by vibration, wear or external influence during the movement of the vehicle, which leads to a break in the wire; The fuse has burned out when a short circuit or overload occurs in the chain, the fuse blocks, protecting the chain; The relay malfunction, the relay is a component that controls the turning on and off the light bulb circuit, if it is damaged, the bulb will not work properly.

Solution: Check the light bulb. If the thread of incandescent has burned out, replace it with a new light bulb of the same model. Clean dirt and rust inside the lamp cartridge to make sure that the cartridge is in good contact with the light bulb. If the cartridge is weakened, adjust or replace it accordingly. Check the chain and use a multimeter or other tool to determine if the wires are cut off. After detecting the cliff point, reconnect or replace the wires. Check the fuse block to find a fuse associated with the rear combined lamp. If the fuse is burned out, replace it with a fuse with the same characteristics. Check if there is a short circuit or overload in the chain, and eliminate the malfunction in time. If the relay is faulty, replace it with new ones.

Insufficient lighting

Causes of malfunction: the light bulb is aging. As the service life increases, light bulb efficiency is gradually reduced; The lampshade is polluted or ages. Dirt, dust or yellowing on the surface of the lampshade affect light transmission and lead to insufficient brightness; The voltage is too low, the vehicle power supply fails, for example, the output voltage of the generator is unstable or the battery is discharged, which leads to the fact that the voltage at both ends of the light bulbs becomes below normal operating voltage.

Solution: if the light is aging, replace it with a new one to increase brightness; Clean the lampshade, use a clean soft cloth and detergent to wipe the surface of the lampshade to remove dirt and dust. If the lampshade is seriously outdated, consider the possibility of replacing it; Check the car power system, use a voltmeter to measure the output voltage of the generator and battery charge. If the output voltage of the generator is abnormal, the generator must be repaired; If the battery charge is low, charge or replace the battery on time.

The turning signal flashes abnormally

The reason for the malfunction: the mismatch of the power of the lamp of the rotation indicator. When replacing the lamp, a lamp with a power that is different from the original one is used, which will lead to a change in the flashing frequency; malfunctioning the relay of the turning indicator. The relay of the rotation indicator is a component that controls the flash of the turning indicator. Its damage will lead to an abnormal frequency of blinking; Bad contact in the line. The connection point in the turning indicator circuit is weakened or has poor contact, which will affect the stable current transmission and will lead to an unstable flag rate.

Solution: Check the power of the rotation pointer lamp and make sure that all the rotation indicator lamps have the same power. If the power does not match, replace it with the lamp of the desired power. If the rotation indicator relay is faulty, replace it with new ones and adjust it to the corresponding flashing frequency. Check the turning indicator circuit to make sure that all connection points are reliable, without weakening or poor contact. If any problems are found in the chain, repair or replace them on time.

The rear combined lantern is poured or cut

The causes of the malfunction: the lampshade is not closed, the sealing tape can be old, damaged or incorrectly installed, which leads to moisture enters the lamp; The ventilation holes are blocked. Ventilation holes on the rear combined lanterns are used to align the air pressure inside and out the lamp. If the ventilation holes are blocked, the air in the lamp cannot circulate normally, and when temperature changes, water fog is easily formed; When the vehicle overcomes a ford or goes in harsh conditions, water can penetrate the lamp through various cracks.

Solution: Check the lampshade sealing strip. If it is old or damaged, replace it with a new one and make sure that it is installed correctly and well sealed. Clean the ventilation holes and use a thin needle or other tools to carefully clean the ventilation holes to make sure that they are not clogged. If the water has got into the lamp or it fades, remove the rear combined lamp, wipe the moisture with a clean cloth, and then dry it in a well -ventilated place or use a hair dryer to dry it. Make sure it is well sealing during installation.

The lamp cover cracked or damaged

The cause of the malfunction: the effect of external power, for example, the blow of the vehicle by extraneous objects during movement or a blow by other items during parking; Long -term use leads to the fact that the lampshade is aging, becomes fragile and easily breaks.

Solution: If the lampshade cracked or damaged, it should be replaced in time with a new one to ensure the normal use of light and a beautiful appearance of the car. When replacing the lampshade, be sure to select the one that corresponds to the original model, and make sure that it is installed correctly.
