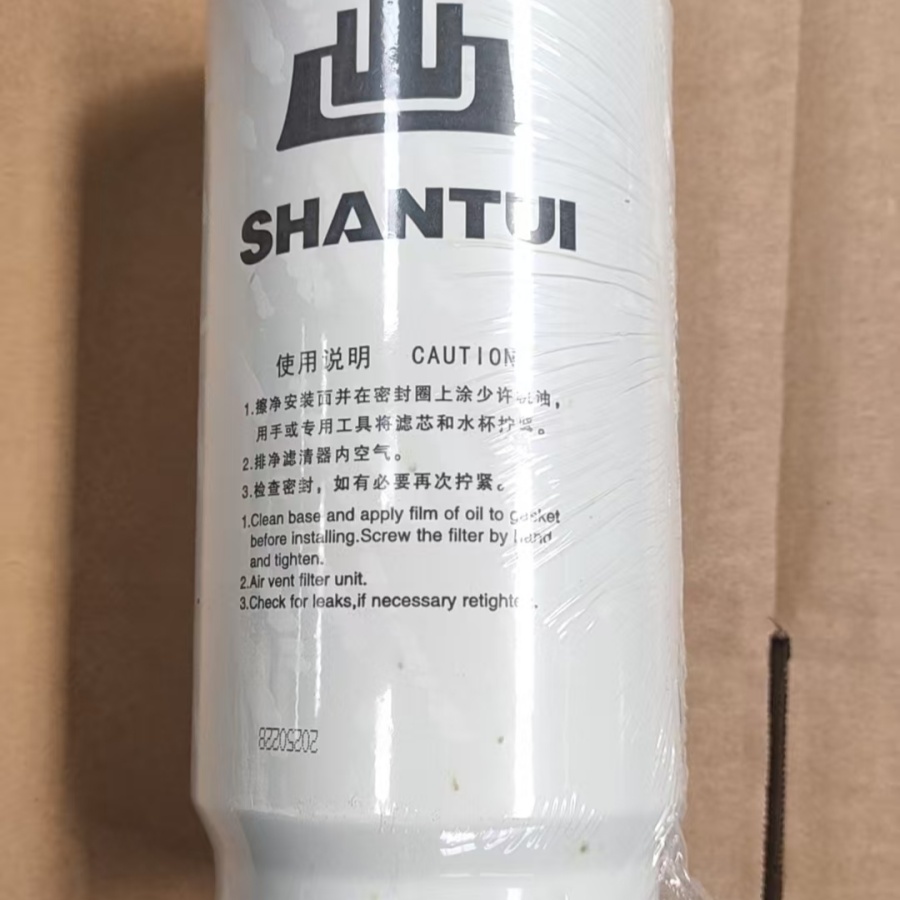

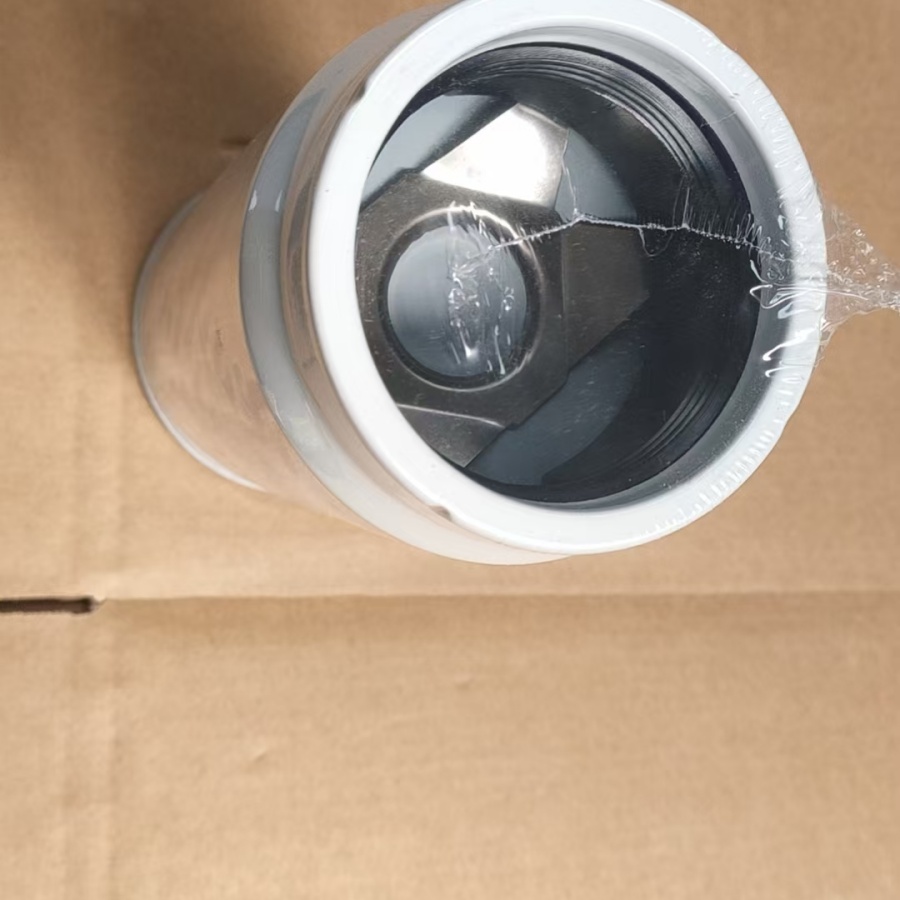

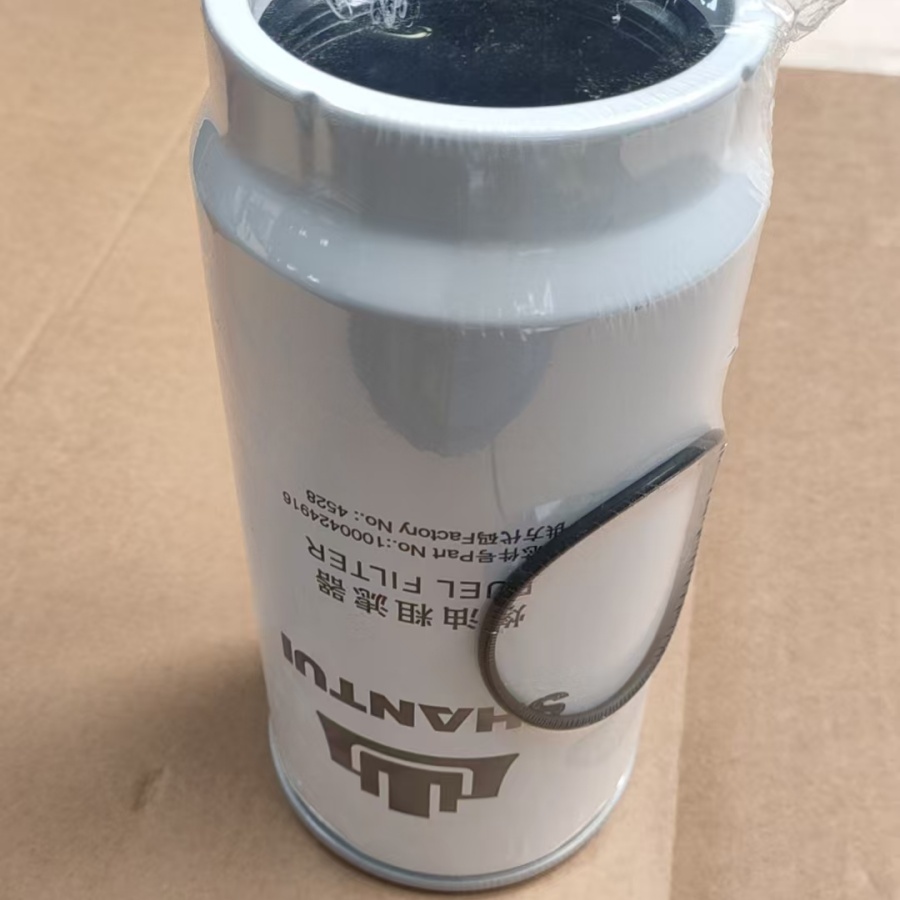

Shantui TP1000424916 Primary filter element of coarse fuel filter
1、High filtration efficiency: Removes up to 98% of mechanical impurities (sand, dirt) from fuel, preventing wear of engine components and ensuring stable operation.
2、Strength and durability: Made of high-quality materials that are resistant to aggressive environments and temperature changes, which guarantees a long service life (up to 10,000 km under standard conditions).
3、Perfect compatibility: Designed specifically for Shantui equipment, it ensures precise matching of dimensions and connection units, simplifying installation and replacement without additional adapters.
Product representation
1. General idea of the main filter element Shantui TP1000424916
The main filter element of the rough fuel filter Shantui TP1000424916 is a key component of the diesel fuel cleaning system for SHANTUI construction equipment. It is intended for preliminary removal of large mechanical impurities (sand, dirt, metal chips, crusts) from fuel before entering a thin filter and engine. Unlike standard filter elements, this product is designed by the specifics of the work of heavy SHANTUI (excavators, tractors, rollers), adapted to severe operating conditions (dusty sites, temperature changes) and guarantees stable protection of the sensitive components of the engine (injectors, a high -pressure pump) from wear and damage.
Its main task is to prevent contaminants from entering the fuel system, which directly affects the service life of the engine, reducing fuel consumption and reducing the frequency of repairs. Thanks to high-quality materials and thoughtful design, the element has become an integral part for Shantui equipment owners seeking to ensure uninterrupted operation of the equipment.
2. Technical characteristics of the main filter element
2.1 Filtration efficiency
The main filter element Shantui TP1000424916 provides high efficiency in removing mechanical impurities:
Removes up to 98% of impurities larger than 10 microns (including sand, dirt and small metal particles) - this meets Shantui quality standards and the requirements of modern diesel engines (e.g. Weichai, Yuchai series engines installed on Shantui equipment).
For particles sized 15–20 µm, the filtration efficiency reaches 99.5%, which eliminates the most dangerous contaminants for the engine, which can cause wear of the injector nozzles and damage to the cylinders.
2.2 Material characteristics
The filter material is selected taking into account durability and resistance to aggressive environments:
Filter paper: Synthetic multi-layer paper with a reinforced structure (with the addition of polyester) is used. It has high strength (does not break at pressures up to 0.8 MPa), resistance to diesel fuel, antifreeze and chemicals, and also retains its shape at temperature fluctuations from -30 °C to +80 °C.
Element frame: Made of durable plastic or metal (depending on the modification) with high impact strength - prevents deformation during assembly/disassembly and vibrations of the equipment.
2.3 Design parameters
Element height: 185mm (suitable for standard Shantui coarse fuel filter housing).
External diameter: 92 mm; internal diameter: 45 mm - ensures a tight fit in the filter housing, eliminating bypass (slippage of uncleaned fuel).
Maximum working pressure: 0.8 MPa - corresponds to the working pressure of the fuel system of Shantui equipment, ensuring a stable fuel flow even under high loads.
Service life: Under standard conditions (using fuel that complies with GOST or EN 590 standards), the service life of the element reaches 10,000 km or 6 months (depending on the intensity of use - for equipment operating in sandy conditions, replacement is recommended every 6,000 km).
3. Design features
3.1 Multilayer filter structure
The filter element has three functional layers that provide comprehensive cleaning:
Outer layer: Grape-shaped structure - retains large impurities (>20 µm in size), preventing rapid clogging of the inner layers.
Middle layer: Densitic synthetic paper - removes small particles (10-20 microns), which are the main cause of wear of engine components.
Inner layer: Microporous material - additionally cleans the fuel from residual impurities and prevents particles from peeling off from the inner surface of the element.
3.2 Hermetic connections

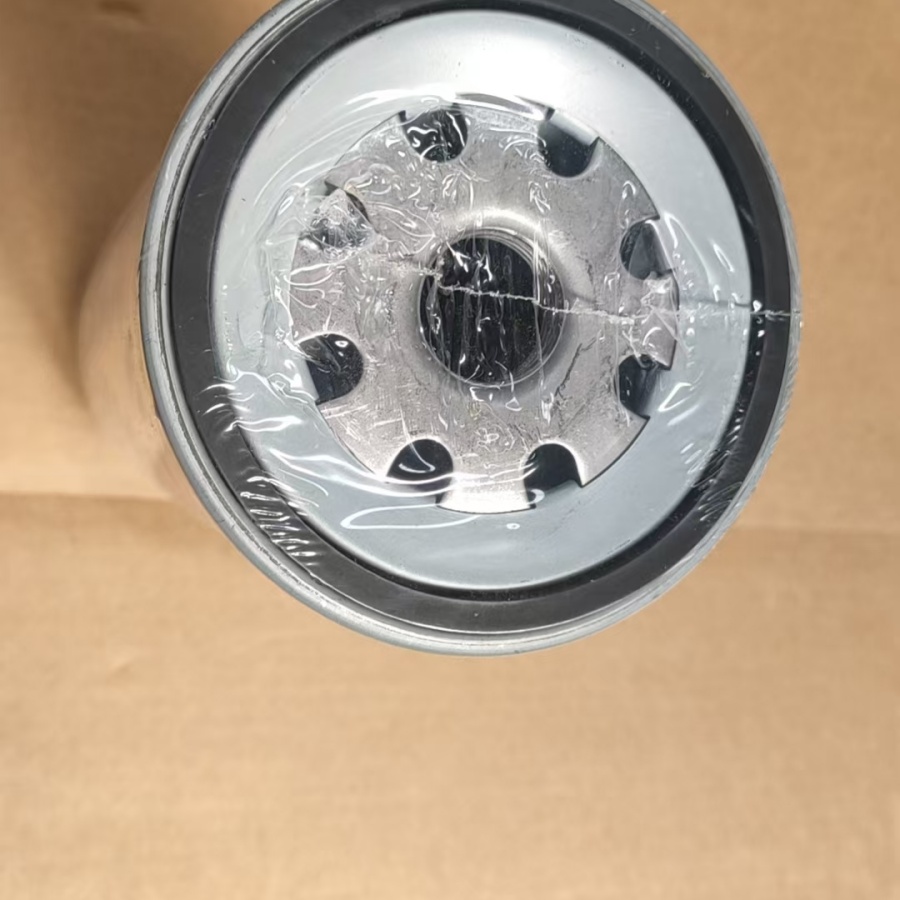

The edges of the element are fitted with sealing gaskets made of high-quality rubber or silicone (5 mm thick). They provide a hermetic connection with the filter housing, preventing unpurified fuel from entering the engine system through gaps.
The gaskets are resistant to diesel fuel and temperature changes - they do not oxidize and do not lose elasticity throughout the entire service life of the element.
