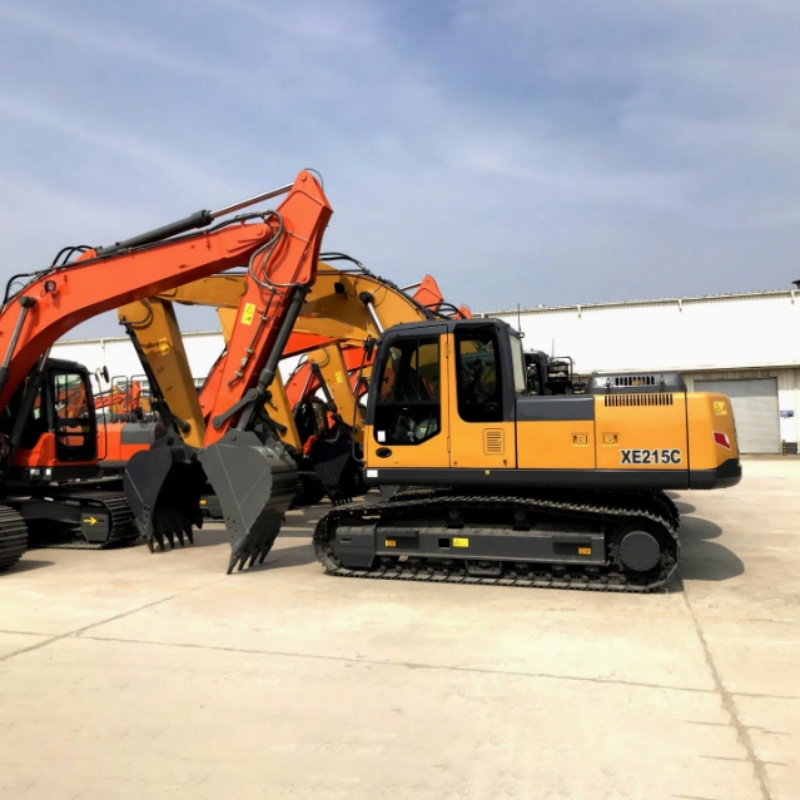

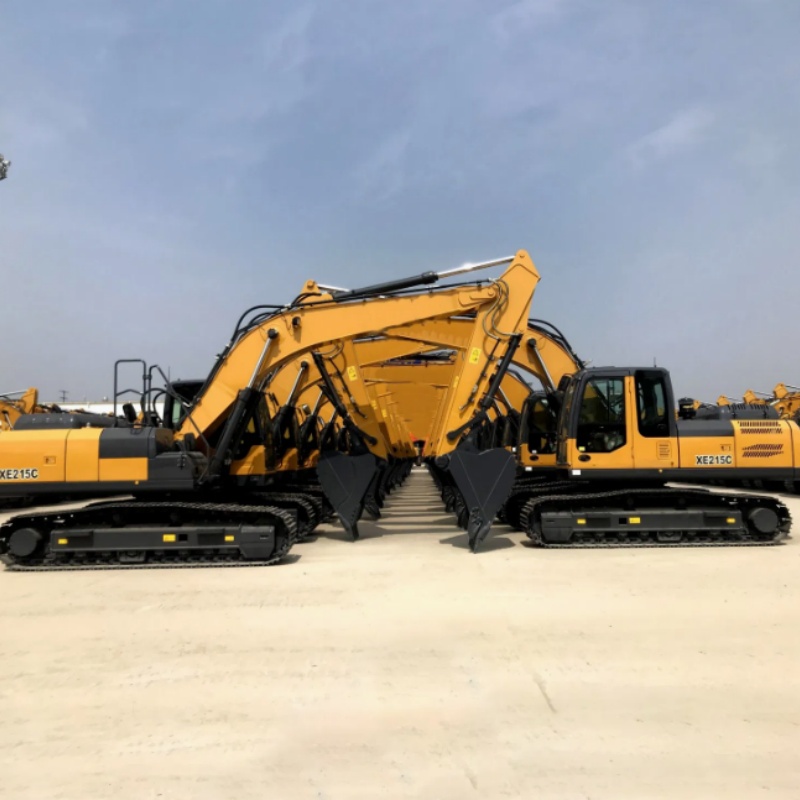

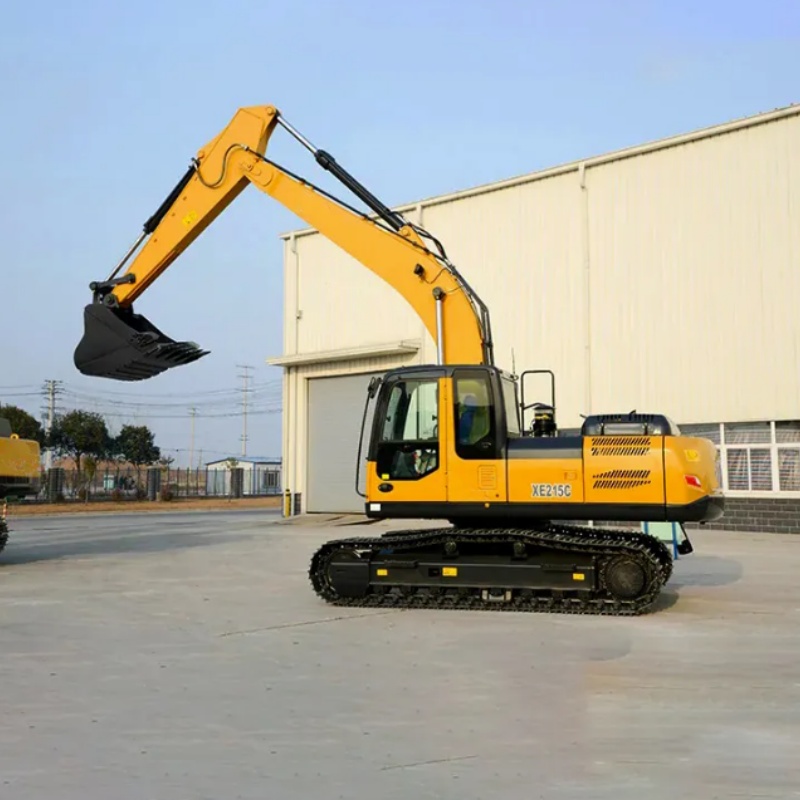

21 ton caterpillar excavator
1. Powerful power: equipped with a high -performance engine, it has a large output torque and a large digging force, and can also cope with various difficult working conditions.
2. Effective work: the operating device has an optimized design, is smooth for moving, the short time of the working cycle and high efficiency.
3. Stability and reliability: the whole machine has a strong design, good stability of the chassis, high -quality key components and high durability.
4. Intellectual control: equipped with an intellectual control system and a sensitive working handle, which allows accurate movement control; It is equipped with a large monitoring screen, in real time in real time about the state of equipment and more convenient control.
Product representation
The power system: the original imported engine Mitsubishi 4M50 Isu, meets the requirements of Tier2, the rated power of 118 kW/1950 rpm, is equipped with a fuel pump and a pressure sensor, effectively improves fuel economy.
Hydraulic system: original imported hydraulic parts, the main pump is an adjustable binop pier, maximum consumption of the main pump 2 × 215 l/min, high efficiency.
Comfort of operation: a new cabin and seat, a new interior, a new automatic air conditioning system with automatic air adjustment and distribution; It is equipped with a large color monitor screen, real -time monitoring of the working condition of the machine, with the functions of self -diagnosis of malfunctions and recordings, and various modes of work, such as manual throttle and electric throttle to choose from.
Working power: the working weight of the entire machine is 21500 kg, a bucket capacity of 0.93 squares, the length of the bucket beam is 2900 mm, the rotation speed is 11.5 rpm, the speed of movement is 3.3/5.4 km/h, the rise of 70%/35 °, the digging force of 115 kN, the digging force of the bucket beam 92.5 kN.
Dimensions: total transport length 9560 mm, total transport width 2800 mm, total transport height 3120 mm, a width of a caterpillar slab 600 mm.
Parameters
| The main parameters of the entire machine | Weight | 21500KG |
| Total length at the time of transportation | 9560 (mm) | |
| Total height during transportation | 3120 (mm) | |
| The width of the track | 2980 (mm) | |
| The length of the path | 4060 (mm) | |
| Manometer | 2380 (mm) | |
| Minimum road clearance | 466 (mm) | |
| The length of the movable lever | 5700 (mm) | |
| Bucket length | 2900 (mm) | |
| The volume of work | The maximum digging height | 9275 (mm) |
| The maximum unloading height | 6560 (mm) | |
| The maximum digging depth | 6515 (mm) | |
| The maximum digging range | 9865 (mm) | |
| Maximum depth of vertical digging | 5915 (mm) | |
| The minimum turning radius | 3630 (mm) | |
| The radius of turning the tail | 2720 (mm) | |
| Mechanical system | Engine model | Mitsubishi 4M50 ISU |
| rating | 118KW | |
| Hydraulic system | Hydraulic pump | Kawasaki, Japan |
| Hydraulic valve | Kawasaki, Japan | |
| Nominal working pressure | 31mpa | |
| Maximum flow rate l/min | 250L/min | |
| Work parameters | Bucket capacity (SAE) | 0.93M³ |
| speed of movement | 3.5-5.2km/h | |
| Rotation speed | 11.5r/min | |
| Fuel tank capacity | 350L |
